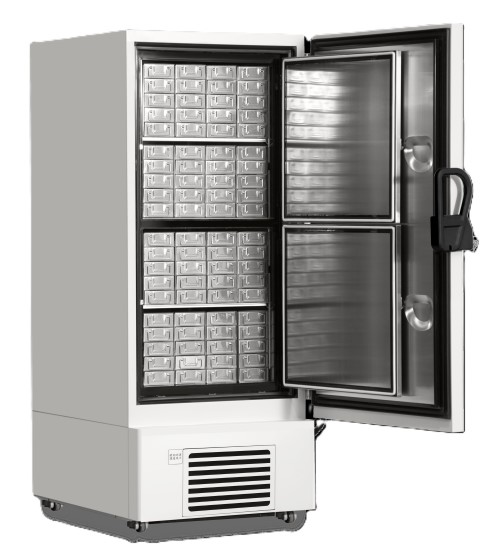

Ultra-low freezers (-86° C)Premium series -Touch Screen Model
Ultra-low freezers (-86° C)Premium series -Touch Screen Model
Control System
Microprocessor Control with Digital LED display of temperature.
Membrane Keypad, password protect configurations & self-diagnosis.
Temperature sensor PT100/NTC for temperature measurement.
Audio Visual Alarm for temperature Deviation, power failure, low battery, door open, clogged filter/high ambient & system failure, power Abnormal.
Eco-Friendly Refrigeration System
Refrigeration System with unique technology for rapid cooling
Imported compressors of reputed brand, operating in parallel.
Non-CFC, Non HCFC, environment friendly refrigerant mixture.
Super silent operation with low noise level.
Air cooled condenser aided by continuous rated ebm fan motor.
High purity copper coils all around the inner cabinet for efficient cooling
Safe stop and time delay restart provide additional safety.
Cabinet design
Inner cabinet and adjustable shelves made of stainless steel SS304.
Outer cabinet of CRCA sheet with durable paint and attractive finish.
High efficiency double foaming insulation of CFC – free, eco-friendly PUF insulation with Vacuum in Panel (VIP+)
Ergonomically designed Patent technology insulated main door & individual inner sub doors
FEATURES
Twin circuit of durable silicon gaskets prevent air seepage and ensure excellent sealing.
Patented CAM action lock with handle & vacuum release device for easy door opening
Power source 220 volt/50 Hz, Single Phase.
Hot condenser line around the mouth of the cabinet prevents moisture condensation.
Bottom panel dust filter to maintain condenser dean
Heavy duty swivel castors with brakes.
Port for validation.
| Product Code | Inner
Volume (Litre) |
External
Dimensions (WxDxH) mm |
Internal
Dimensions (WxDxH) mm |
No. of Shelves | No of Compartments | No. of Sub-doors | Power consumption
(Kwh/day) |
Weight | Cryo Racks 2” | Cryo Boxes100 Grit | 2 size
Vials |
| SI-UFP-400 | 400 | 785x1041x1947 | 450x700x1270 | 3 | 4 | 2 | 10 | 300/320KG | 12 | 300 | 30,000 |
| SI-UFP-520 | 520 | 930x1041x1947 | 585x700x1270 | 3 | 4 | 2 | 11 | 320/340KG | 16 | 400 | 40,000 |
| SI-UFP-670 | 670 | 1070x994x1947 | 750x700x1270 | 3 | 4 | 4 | 12 | 340/360KG | 20 | 500 | 50,000 |
| SI-UFP-770 | 770 | 1208x994x1947 | 870x700x1270 | 3 | 4 | 4 | 12 | 360/370KG | 24 | 600 | 60,000 |
| SI-UFP-850 | 850 | 1200x997x1998 | 880x700x1380 | 3 | 4 | 4 | 13 | 440/460KG | 24 | 600 | 60,000 |
| SI-UFP-1000 | 1000 | 1345x997x1998 | 1030x700x1380 | 3 | 4 | 4 | 13 | 480/500KG | 28 | 700 | 77,500 |
