Ultra-low freezers (-86° C)NEWGEN (-86° C)- STANDARD SERIES
Ultra-low freezers (-86° C)NEWGEN (-86° C)- STANDARD SERIES
Control System
Microprocessor based temperature control system.
Digital LED display of set and process temperature.
Audio-visual alarms for High/Low temperature (deviation).
Fast response, Pt-100 RTD sensor for accurate temperature measurement.

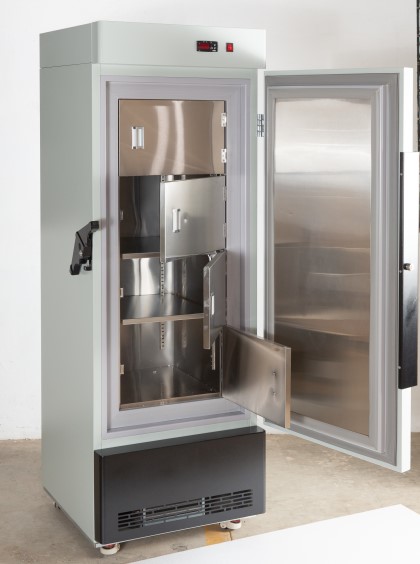

Cabinet design
Outer cabinet made of powder coated CRCA sheets
Inner tank made of stainless steel AISI 304 grade.
Four compartments using stainless steel (SS-304) shelves
Individual sub-doors for each compartment made of Stainless steel
Non-CFC, high density, Polyurethane Foam insulation of 150 mm thickness.
Durable magnetic rubber gaskets of twin circuits.
PUF insulated, left hinged, main door with inner FRP lining and lock.
Hot line around the front of the cabinet to prevent moisture condensation.
Equipment mounted on Heavy duty swivel castors with brakes.
Heavy-duty, hermetically sealed compressor.
Non-CFC, eco-friendly refrigerant
Air-cooled condensation system, aided by continuous rated motor fans.
High purity (99.9%) copper cooling coils all around the inner cabinet.
Data Table
| Model | Inner Volume (L) | Internal Dimension (WxDxH) mm | External Dimension (WxDxH) mm | Input Power (W) | Weight (Nt/Gt) Kg |
| URC-V-80-4 | 80 | 380 x 410 x 500 | 620 x 660 x 1275 | 450 | 80/108 |
| URC-V-170-4 | 170 | 380 x 415 x 1020 | 620 x 660 x 1795 | 500 | 100/147 |
| URC-V-350-4 | 340 | 500 x 500 x 1300 | 760 x 765 x 1975 | 550 | 170/205 |
| URC-V-400-4 | 400 | 500 x 600 x 1300 | 760 x 865 x 1975 | 800 | 190/222 |
| URC-V-550-4 | 550 | 600 x 700 x 1300 | 860 x 965 x 1975 | 850 | 220/271 |
| URC-V-660-4 | 660 | 700 x 700 x 1300 | 960 x 965 x 1975 | 1000 | 250/305 |
| URC-V-750-4 | 750 | 890 x 620 x 1300 | 1150 x 885 x 1975 | 1100 | 270/330 |
| URC-V-950-4 | 940 | 1000 x 700 x 1300 | 1260 x 965 x 1975 | 1300 | 320/390 |
