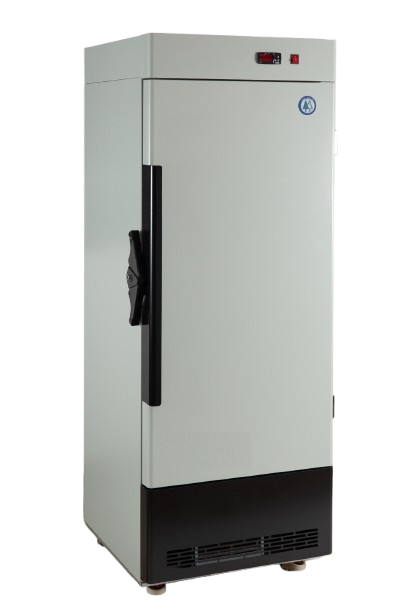

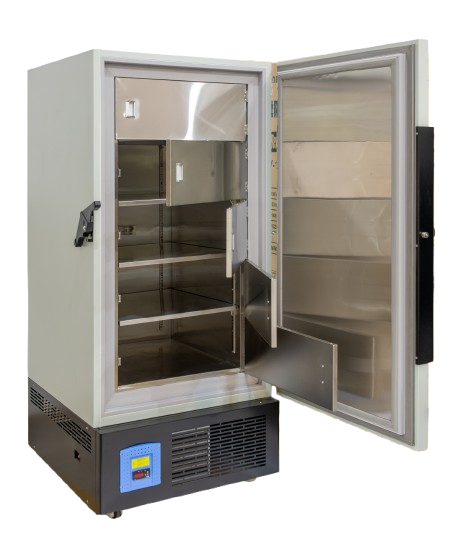

DEEP FREEZER (-40° C)DEEP FREEZER (-40° C)

Specification

Temperature range-36^°c up to -40 ^°C

Construction

• Inner cabinet made of Stainless Steel SS 304 sheet
• Outer cabinet made of scratch resistant powder coated CRCA sheet
• Height-adjustable shelves made of Stainless Steel SS 304 sheet
• Foam-in-place polyurethane (Non-CFC and Eco-friendly) of 75 mm thickness for effective thermal insulation
• Sub-doors for each compartment made of Stainless Steel SS-304 with thermal insulation
• Main door provided with magnetic gasket and locking facility for security
• Heavy-duty hinges and latches for longer life
• Four Castor wheels with brakes for easy mobility
• Adjustable feet (on-request) for placing the equipment in uneven floor level

Control System:

• Microprocessor based temperature control system
• Digital LED display of set and actual ternperature
• Audio-Visual alarm for High/Low temperature deviation (Adjustable)
• MCB for over current protection
• Automatic voltage stabilizer with High/Low voltage cut-off

Refrigeration:

• Hermetically sealed Compressor with OLP for safety cut-off
• Non-CFC, Non-HCFC, Eco-friendly Refrigerant
• Air-cooled condensation system using aluminium finned copper coil and continuous rated fan motor
• Highpurity 99.97% copper cooling coils for transfer of cooling energy on all sides of the inner cabinet
• All refrigeration accessories are from top brands like Danfoss, Emerson, Embrace, Tecumesh, etc

Other Features

• Access Port (50 mm diameter) for validation
• Temperature calibrationtraceable to National standards

Optional Accessories

• Chart Recorder/ Data Logger for continuous logging of temperature
• Battery Back-up for temperature display with power failure alarm and low battery alarm
• Cryo Racks and Boxes
• open alarm
• Filter for condenser with clogged filter alarm and high ambient alarm
• Cryo Gloves
• GSM alert for temperature deviation
• IQ/PQ  documentation/ validation
